Are All 52cc Brush Cutter Engine Parts Interchangeable?
See why 52cc brush cutter engine parts are not automatically interchangeable and what dealers should confirm for carburetors, starters, clutches, and spares.
52cc Brush Cutter Spare Parts Compatibility: Will Every 52cc Engine Part Fit?
Two brush cutters can both be sold as 52cc machines and still use engine parts that do not fit each other. For 52cc brush cutter spare parts compatibility, displacement is only a starting reference. It does not confirm mounting patterns, dimensions, connectors, threads, starter design, clutch arrangement, or the specification of an individual engine component.
Repair shops, distributors, and importers should identify the actual engine platform before ordering replacement carburetors, recoil starters, clutches, ignition parts, or other engine-side components. This guide focuses specifically on engine parts. Shaft tubes, gearboxes, blade holders, and cutting attachments require separate compatibility checks.
Quick answer: Do not order engine parts only because a brush cutter is described as 52cc. First confirm the complete machine model and engine model, then compare the replacement part by part number, dimensions, mounting points, threads, connectors, linkage, or other relevant features. For the TM-CG520TU, the listed engine reference is TU52, which is more useful for spare-parts identification than the 51.7cc displacement alone. Dealers carrying several similar brush cutter platforms should keep engine-side spare parts separated until interchangeability has been confirmed.
Why “52cc” Is Not an Engine Part Number
The term 52cc describes the engine displacement class. It is useful for identifying the general type of machine, but it does not contain enough information to select a specific replacement component.

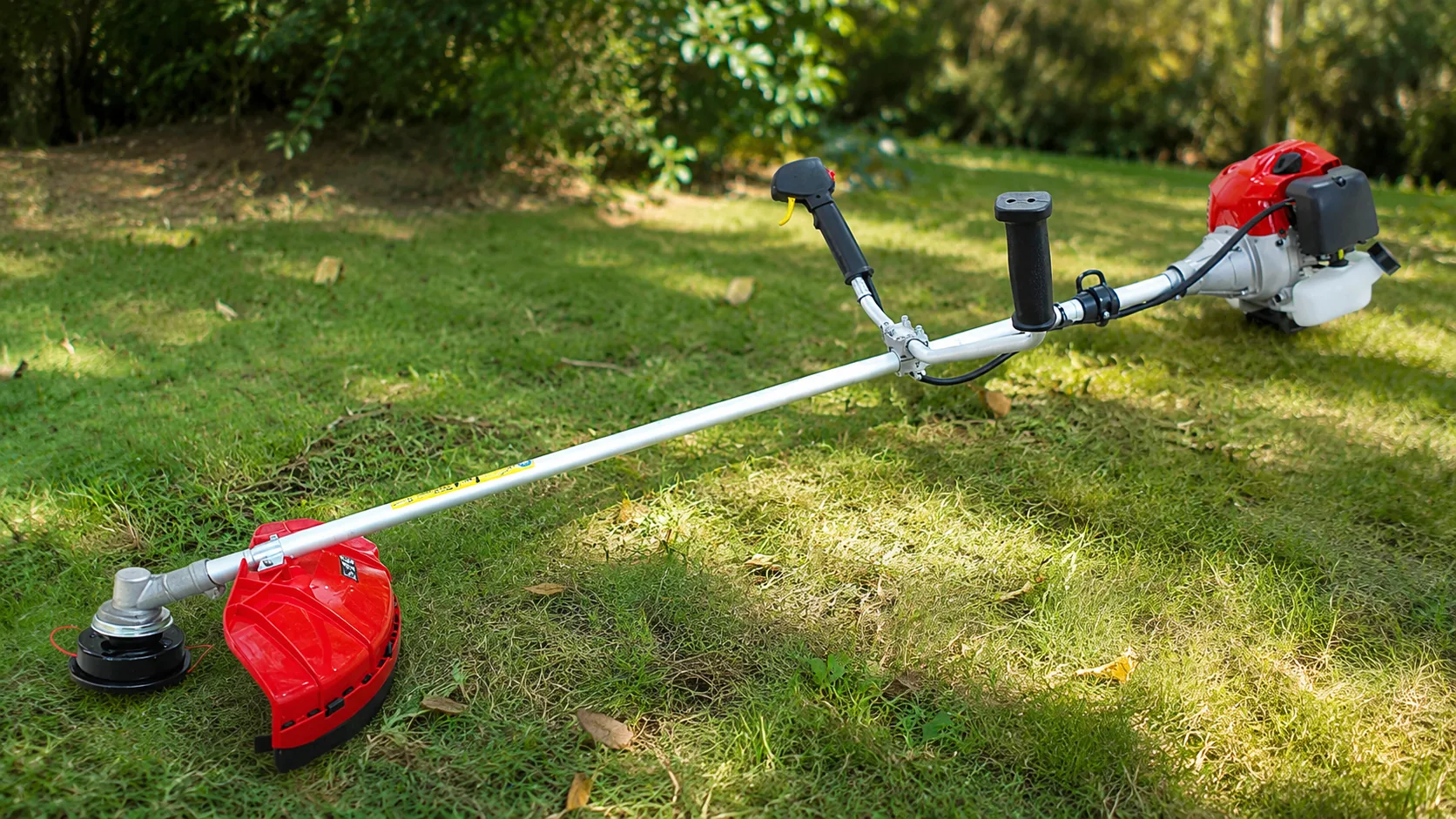

For example, the TM-CG520TU 52cc gasoline brush cutter is listed with a TU52 engine model, 51.7cc displacement, two-stroke air-cooled construction, and 1.8kW rated output at 6500rpm. Its specification also lists a 28mm shaft diameter.
For engine spare-parts planning, “TU52” is therefore more specific than simply recording “52cc brush cutter.” Another machine in the 51–52cc category may use a different engine platform even if the displacement and rated output appear similar.
| Identification Detail | TM-CG520TU Example | Use in Parts Matching |
| Machine model | TM-CG520TU | Identifies the complete brush cutter configuration. |
| Engine model | TU52 | More useful starting point for engine-side parts. |
| Displacement | 51.7cc | Describes engine capacity, not individual part fit. |
| Rated output | 1.8kW at 6500rpm | Does not identify clutch or other replacement-part dimensions. |
| Shaft diameter | 28mm | Relevant to shaft-side checks, not proof of engine-part compatibility. |
Start With the Engine Model Before Comparing Replacement Parts
Before ordering an engine component, locate the engine reference on the machine, engine label, technical specification, parts list, or supplier documentation. For the TM-CG520TU, the listed engine reference is TU52.
Record the engine model together with the complete machine model. This becomes particularly useful when a distributor stocks visually similar 43cc, 47cc, 49cc, 51.7cc, and 52cc brush cutters that may not share the same engine platform.
| 1 | Identify the complete brush cutter model. Do not begin with a generic description such as “52cc side-pack brush cutter.” |
| 2 | Identify the engine platform. Use the engine label, specification, parts list, or supplier confirmation. |
| 3 | Identify the exact component. Record any part number, marking, thread, connector, or mounting detail visible on the original. |
| 4 | Compare the physical part. Photos help, but dimensions and mounting details are more useful when parts look almost identical. |
Carburetors, Recoil Starters, and Clutches Need Different Checks
Different engine components fail compatibility checks for different reasons. A supplier description such as “for 52cc brush cutter” is not enough to confirm these parts without additional comparison.
| Part | What to Compare | Common Ordering Risk |
| Carburetor | Mounting-hole spacing, intake connection, throttle linkage, fuel-line connections, primer configuration, choke mechanism, and adjustment layout, depending on the confirmed configuration. | Externally similar carburetors may use different mounting or control arrangements. |
| Recoil starter | Mounting holes, starter pulley, engagement mechanism, rope direction, and housing dimensions. | A similar starter cover may not align with the engine or engage correctly. |
| Clutch | Clutch dimensions, mounting threads, drum relationship, spring arrangement, and surrounding housing. | Matching displacement or rated power does not prove clutch compatibility. |
When replacing a recoil starter, compare the complete assembly rather than only the plastic housing. After safe removal, the replacement should align with the mounting points, engage with the starter mechanism, sit flat against the engine housing, and allow normal rope movement without binding.
A replacement part that needs to be forced into position should not automatically be blamed on installation technique. Incorrect compatibility may be the reason.
Ignition Parts Must Also Match the Confirmed Engine Platform
Ignition coils, flywheels, spark-plug leads, switches, and related electrical components can vary between engines sold under similar displacement descriptions.
An ignition coil must mount correctly and work with the corresponding engine system. Connector style, mounting location, clearance, and associated components may matter depending on the confirmed engine configuration.
Do not use appearance as the only compatibility test. If no confirmed model reference or part number is available, compare the original component's dimensions, mounting arrangement, electrical connections, and identification markings before ordering.
For distributors supplying independent repair shops or service centers, this extra identification step can prevent workshop time being wasted on an inexpensive part that physically cannot be installed on the customer's engine.
Do Not Mix Engine Compatibility With 28mm Shaft Compatibility
The TM-CG520TU specification lists a 28mm shaft diameter. That measurement can be useful when evaluating parts associated with the shaft assembly, but it does not confirm whether an engine component fits.
28mm Shaft Diameter Does NOT Confirm
|
Engine Family Does NOT Automatically Confirm
|
Keeping engine-side, shaft-side, and cutting-system compatibility as separate parts records is a simple way for dealers to reduce incorrect spare-parts shipments.
Compare Original Parts Before Ordering Generic Replacements
Generic replacement components can be useful in markets where workshops repair several gasoline brush cutter brands, but terms such as “universal” or “52cc replacement part” should be treated carefully.
Whenever possible, compare the original sample before placing a bulk spare-parts order. External dimensions, bolt spacing, threads, connectors, fuel connections, linkage positions, and any molded, stamped, or printed identification marks can provide useful confirmation.
- complete brush cutter model;
- engine model;
- original part number, if available;
- clear photos of the original component;
- mounting-position photos where useful;
- relevant dimensions and connector or thread details.
Photos are useful for initial screening, but dimensions are normally more informative when two versions share almost the same external appearance.
TM-CG520TU as a Reference for 52cc Spare-Parts Planning
| TM-CG520TU 52cc Gasoline Brush Cutter |
For dealers building an after-sales spare-parts package around this machine, start with the confirmed TM-CG520TU machine model and TU52 engine reference rather than searching for a generic list of “52cc brush cutter parts.” The listed configuration includes 51.7cc displacement, two-stroke air-cooled construction, rated output of 1.8kW at 6500rpm, and a 28mm shaft diameter. Engine-side service components should then be confirmed individually according to the selected configuration.
|
Dealer Spare-Parts Audit Before Ordering
A dealer handling several large two-stroke brush cutters should build the spare-parts list around each confirmed model rather than merging all 52cc components into one inventory group.
| Check | Dealer Audit Item | Action Before Bulk Ordering |
| 01 | Machine identification | Record the complete brush cutter model, not only displacement. |
| 02 | Engine identification | Record the specific engine model, such as TU52 for TM-CG520TU. |
| 03 | Carburetor confirmation | Compare mounting, intake, linkage, fuel connections, and relevant configuration details. |
| 04 | Starter confirmation | Check mounting holes, engagement system, pulley, rope direction, and housing fit. |
| 05 | Clutch confirmation | Confirm the clutch against the actual engine and clutch assembly rather than rated power. |
| 06 | Ignition-part identification | Verify mounting, connector style, clearance, and related engine details. |
| 07 | Original sample comparison | Use dimensions, threads, bolt spacing, connectors, and identification numbers where available. |
| 08 | Engine vs shaft records | Keep engine-side and 28mm shaft-side compatibility checks separate. |
| 09 | After-sales stock coding | Do not merge different parts into one “52cc spare” code unless interchangeability has been verified. |
| 10 | Order documentation | Confirm final spare-parts availability and specifications against the actual model and quotation. |
52cc Brush Cutter Spare Parts FAQ
Will any 52cc brush cutter carburetor fit another 52cc brush cutter?
No. Displacement alone does not confirm carburetor compatibility. Mounting-hole spacing, intake connection, throttle linkage, fuel connections, primer and choke arrangements may differ depending on the engine configuration.
Can I buy a recoil starter by searching only for “52cc brush cutter starter”?
That description is not enough to confirm fit. Compare mounting points, starter engagement, pulley arrangement, rope direction, housing dimensions, and preferably the confirmed engine model or part number.
Does the same 1.8kW engine output mean the clutch will fit?
No. Rated output does not identify clutch dimensions, mounting threads, spring arrangement, drum relationship, or surrounding housing. The clutch should be confirmed against the actual engine and clutch assembly.
Does a 28mm brush cutter shaft tell me which ignition coil fits?
No. Shaft diameter belongs to a different compatibility check. A 28mm shaft does not identify the ignition coil, carburetor, recoil starter, clutch, cylinder components, or engine mounting arrangement.
What information should a repair shop send for a replacement engine part?
Send the complete brush cutter model, engine model, required component name, original part number if available, clear photos, mounting-position photos where useful, and relevant measurements. These details help distinguish similar engine versions.
Should distributors stock one spare-parts kit for every 52cc brush cutter?
Only if interchangeability has been verified. When several 52cc machines use different platforms, carburetors, starters, clutches, ignition components, and internal engine parts should remain identified by the actual model or confirmed part reference.
| Use the Engine Platform, Not “52cc,” as the Starting Point For TM-CG520TU spare-parts planning, start with the TU52 engine reference and confirm carburetors, starters, clutches, ignition parts, and other components against the exact machine configuration. This approach gives importers and dealers a clearer basis for future service stock and repeat spare-parts orders. |
|
