What Should Importers Confirm With a 63cc Brush Cutter Supplier?

A 63cc brush cutter is normally positioned above lighter 33cc, 43cc and 52cc models in a distributor’s product range. However, a larger displacement shown in the product title does not define the complete machine. The engine, shaft, gearbox, cutting attachment, fuel specification, accessories and service parts must work as one confirmed supply configuration.

When evaluating a 63cc brush cutter supplier, the practical objective is to establish what will be delivered with the sample, the first bulk shipment and future repeat orders. A documented specification makes quotations easier to compare, reduces label errors and gives dealers a usable reference for after-sales support.

1. Audit the Engine Identification and Published Output

“63cc two-stroke engine” is too broad for sample approval, spare-parts purchasing or repeat-order control. The full engine designation should appear in the approved specification sheet and be checked against the physical marking on the sample.

Specification	Listed TM-CG630TB Configuration	Verification Point
Engine model	1E48F-5B	Match the engine marking, quotation, machine label and manual
Engine type	Two-stroke, air-cooled	Confirm the corresponding fuel and lubrication instructions
Displacement	63cc	Do not derive the technical value only from the commercial model name
Rated output	2.4kW at 6500rpm	Use the same value throughout the approved technical materials
Idling speed	3000 ±200rpm	Observe idle stability after warm-up

Similar-displacement engines may use different starters, carburetors, cylinders, ignition components and clutch assemblies. A service department that orders parts using only the description “63cc” may receive visually similar components that do not fit the approved machine.

The listed 2.4kW output at 6500rpm is useful for comparing the model with other products in the supplier’s range, but it should not be converted automatically into a guaranteed cutting diameter or productivity claim. Complete-machine performance also depends on the attachment, blade condition, vegetation, fuel preparation, gearbox condition and operator technique.

2. Treat the 28mm Shaft as a Complete Drive System

The TM-CG630TB lists a 28mm shaft diameter and a 1500mm working shaft length. These figures are useful purchasing references, but neither one confirms the compatibility of the internal drive shaft, clutch drum, gearbox or cutting hardware.

Dimensions to Record Outer shaft-tube diameter Working shaft length Handle mounting position Guard mounting dimensions Blade flange dimensions

Connections to Verify Inner drive-shaft profile and splines Clutch-drum connection Gearbox input connection Gearbox output thread Retaining-nut arrangement

Two machines can both use a nominal 28mm shaft tube while having different splines, gear cases or attachment hardware. Replacement components should therefore be identified by the approved model, connection type and critical dimensions—not by tube diameter alone.

If several brush cutter models are expected to share service parts, interchangeability should be established through physical comparison or controlled drawings before the parts are added to a dealer inventory list.

3. Align the Fuel Instruction and Cutting Package

The listed mixed-fuel ratio for the TM-CG630TB is 1:30. One approved instruction should appear on the product specification, machine or fuel-tank label, manual, mixing bottle if supplied, carton or quick-start information and dealer training materials.

The specification also lists a 1200ml fuel tank. This is capacity information, not a guaranteed operating-time statement. Consumption changes with throttle use, cutting load, engine adjustment and field conditions.

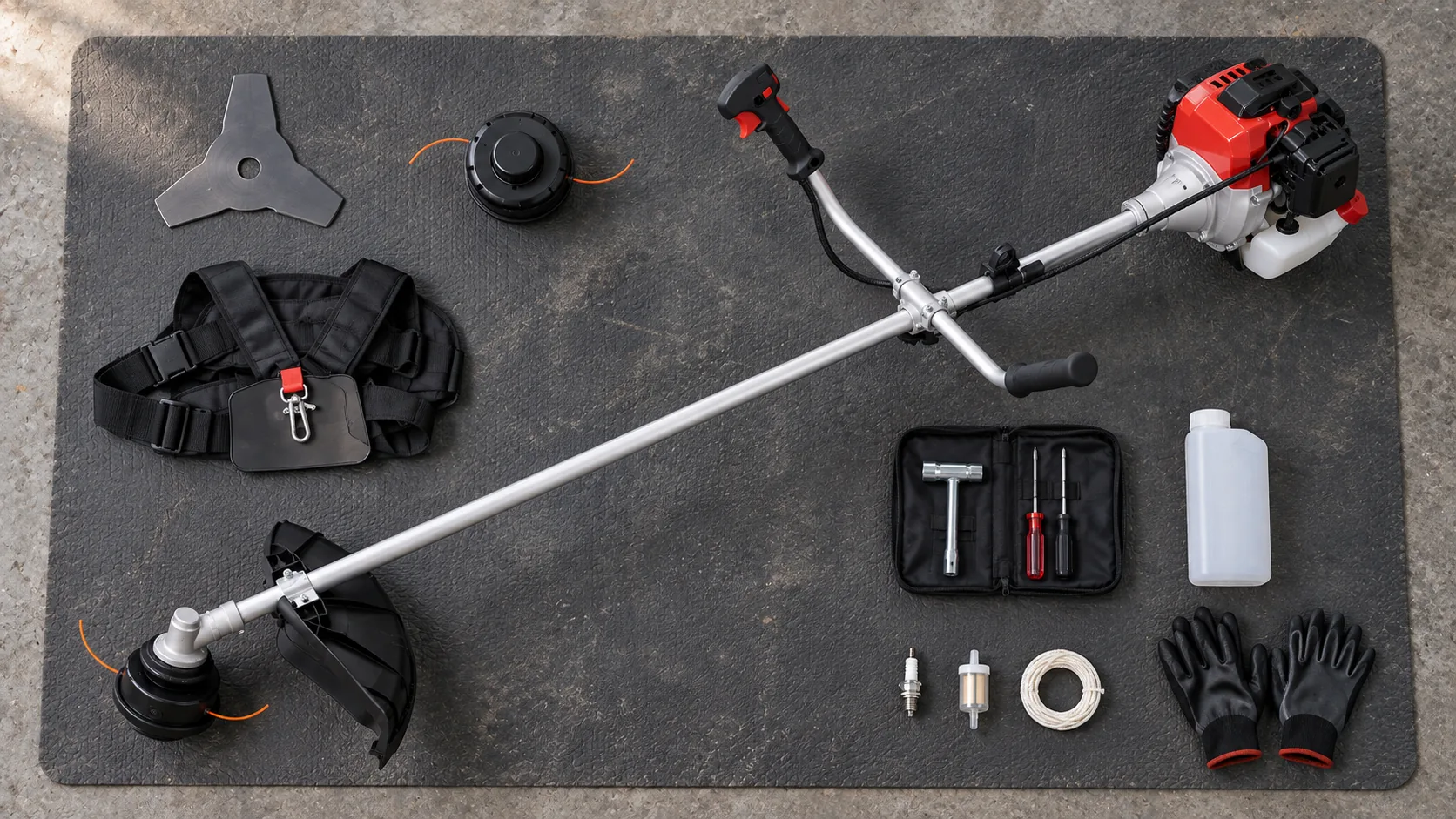

A comparable wholesale quotation must also define the attachment package:

• Blade type, diameter, thickness, center hole and tooth pattern
• Nylon trimmer-head model and supplied line diameter, if applicable
• Gearbox output thread, blade flange and retaining hardware
• Guard design and mounting hardware
• Harness configuration
• Standard tool kit

A higher-displacement engine does not make every available blade suitable for the machine. The attachment must correspond with the gearbox, guard, mounting hardware and intended work. Accessory quantity should also reflect genuine customer demand and local replacement availability rather than being added only to enlarge the carton contents.

4. Assess the Machine Under Its Intended Working Conditions

A 63cc brush cutter may be offered for thicker grass, weeds and more demanding field work. That market position makes balance, harness support, control placement, vibration and hot restarting relevant to sample approval.

Observation	What the Importer Should Establish
Balance and posture	Check the machine with its intended attachment and fuel prepared for work
Handle and controls	Confirm the adjustment range, throttle access and operator reach
Harness support	Evaluate the harness configuration and connection point
Loaded operation	Observe shaft and gearbox vibration, cutting response and fastener stability
Heat cycle	Check hot restart after a controlled cutting period

A sample should not pass only because the engine starts and accelerates without a cutting attachment. The complete machine needs a controlled test with the intended blade or nylon head and representative vegetation.

Supplier qualification and load testing are separate records. The test vegetation, duration, attachment, warm-up method and acceptance criteria should be written in a dedicated sample-testing document rather than left as an informal video demonstration.

5. Build Model-Specific Spare-Parts Support

After-sales planning is part of selecting a 63cc brush cutter supplier. Parts for the TM-CG630TB should be connected to the approved machine configuration or the confirmed 1E48F-5B engine rather than ordered only from a photograph.

Service Area	Relevant Parts	Record Required
Routine service	Air filters, fuel filters and spark plugs	Part reference and applicable engine
Fuel and starting	Recoil starter, carburetor components, fuel caps, hoses and tank parts	Connection type and critical dimensions
Drive system	Clutch components, drive shafts, shaft tubes, gear cases and internal gears	Model, spline profile and dimensions
Controls and cutting	Control handles, throttle cables, guards, cutting heads, blade flanges and retaining hardware	Machine model and mounting reference
Operator equipment	Harnesses and related connection hardware	Approved supply configuration

For repeat orders, retain the part number, critical dimensions, connection type and applicable machine model. This creates a practical service reference and reduces the chance of receiving a component that looks correct but cannot be installed.

6. Control OEM Packaging and Repeat-Order Consistency

The product page states that kraft-carton or customized color-box packaging is available. Private-label artwork should be approved only after the engine, shaft, attachment package and fuel instructions have been finalized.

The machine label, manual, carton, spare-parts list and commercial documents should use the same model reference. If a distributor creates a private model number, the supplier should keep a cross-reference to the original production configuration.

This cross-reference becomes important when packaging is reused for a later order. Without it, an older carton or manual can be applied to a machine whose component specification has changed.

Importer and Dealer Control Checklist

1. 01 — Engine identity: Record 1E48F-5B and match it to the sample, quotation, label and manual.
2. 02 — Published performance: Keep 63cc, 2.4kW at 6500rpm and 3000 ±200rpm consistent across approved materials.
3. 03 — Shaft assembly: Confirm the 28mm tube, 1500mm working length, internal drive profile and gearbox connections.
4. 04 — Fuel information: Use the listed 1:30 ratio consistently on every customer-facing instruction.
5. 05 — Cutting package: Document the blade, nylon head, guard, harness, flange, retaining hardware and tools.
6. 06 — Sample operation: Assess balance, vibration, fastener stability and hot restart under a controlled cutting load.
7. 07 — Spare parts: Connect every service part to a model, part reference, dimension or confirmed connection type.
8. 08 — OEM materials: Approve packaging only after the production configuration is fixed.
9. 09 — Change control: Require written approval for any component change after sample confirmation.
10. 10 — Repeat orders: Retain approved sample photographs, inspection points, artwork and spare-parts references.

7. Prepare a Comparable 63cc Brush Cutter RFQ

Sending only a product link leaves too many variables open. A usable request for quotation should place each supplier offer on the same technical and commercial basis.

Product reference	TM-CG630TB or the exact alternative being quoted
Market details	Required quantity, destination country and intended customer group
Machine configuration	1E48F-5B engine, shaft, handle, gearbox, blade and nylon-head requirements
Included equipment	Guard, harness, tool kit, accessories and spare-parts quantities
OEM request	Logo, color, packaging, manual language and label language
Order control	Sample requirements, inspection points, trade term and preferred shipping port

The TM-CG630TB page lists bulk-order delivery at 40–60 days after deposit and shipment from Ningbo. The actual schedule should be reconfirmed in the proforma invoice because production timing can depend on order quantity, packaging and the final configuration.

Before mass production, keep a written record of the engine, shaft, handle, gearbox, attachments, guard, harness, fuel instruction, labels, manual, carton artwork, packing method, spare-parts references, approved sample photographs and inspection points. A substitute component should not be treated as equivalent merely because it can be installed.

8. Position the TM-CG630TB Within a Dealer Range

The TM-CG630TB can occupy the higher-displacement position in a broader dealer program, but it should not automatically replace smaller machines. Compact models may suit customers prioritizing lower weight and lighter maintenance, while common 43cc and 52cc models may address more general-purpose demand.

Keeping those roles separate helps a sales team explain the purpose of the 63cc option instead of presenting displacement as the only difference. Importers can review the complete TEAMAX brush cutter range to compare available engine sizes and machine configurations.
