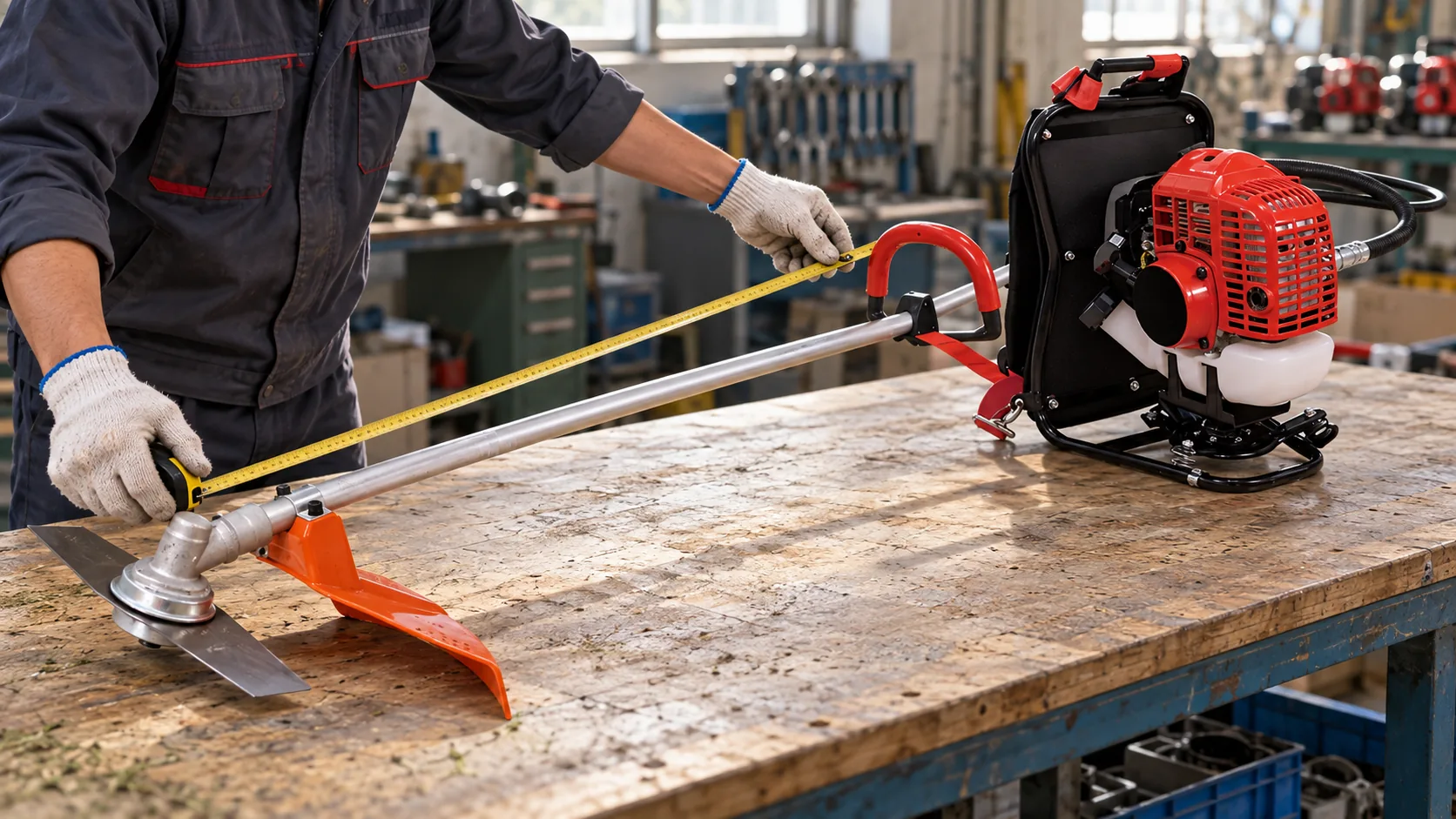

Why Should a Brush Cutter Supplier Confirm Shaft Length?

Brush Cutter Supplier Shaft Length: What Importers Should Verify

A brush cutter supplier should identify working shaft length on a backpack model as clearly as engine displacement. The dimension affects operator reach, the cutting head’s position, drive and control routing, and replacement-part identification.

For importers, “41cc backpack brush cutter” is too broad a description for sample approval. The shaft fitted to the approved machine must remain identifiable in the bulk-order record and on later parts requests.

Quick answer: Record working shaft length and tube diameter separately, then assess the assembled backpack brush cutter with its intended cutting attachment. Check whether the operator can position the cutting head naturally and whether the flexible drive and throttle cable move freely through the working range. For the TM-BG143, the published references are a 1350 mm working shaft and 26 mm shaft diameter. Keep both dimensions tied to the approved model in purchase, inspection and spare-parts records; confirm the final order configuration with the supplier.

Why the Backpack Layout Makes Shaft Length Important

A backpack brush cutter places the engine behind the operator and connects it to a handheld cutting section. The working shaft helps determine how far the cutting head sits from the body and how the operator holds it over the ground.

A change in length can also alter the route taken by the flexible drive and controls. A shaft that looks similar in a product photograph may feel different when the complete machine is worn and moved from side to side.

Record Length and Diameter as Separate Specifications

The TM-BG143 backpack brush cutter lists a 1350 mm working shaft length and 26 mm shaft diameter. Its reference configuration includes the 143R model designation, a 41.5cc two-stroke air-cooled engine and rated output of 1.6 kW at 6500 rpm.

Diameter helps identify the tube and associated mounting components. Length describes the reach of the working section. Matching one measurement does not establish that two shaft assemblies are interchangeable.

Record	TM-BG143 reference	What it helps verify
Machine designation	TM-BG143 / 143R	Which approved machine the shaft belongs to
Working shaft length	1350 mm	Reach and sample-to-order consistency
Shaft diameter	26 mm	Tube and mounting-component identification

Test Operator Position on the Assembled Sample

Fit the intended cutting attachment, adjust the backpack and hold the shaft in a normal cutting position. Check whether the operator can keep the cutting head away from the body without persistent forward bending or pulling the shaft unusually close.

Operator height, terrain and cutting technique vary, so 1350 mm should be assessed against the intended use rather than presented as a universal ideal. The production requirement is to reproduce the length of the configuration the buyer approved.

Watch the Drive and Controls Through Their Working Range

Move the cutting section through its normal left-to-right range during sample inspection. Look for a sharp bend in the flexible connection, contact with the backpack or operator, and any point where a cable becomes tight or pinched.

The throttle should return normally when released. If moving the shaft changes engine speed, or if abnormal vibration, resistance or noise develops, stop the engine before inspecting the drive and cutting-side components. A proposed shaft change calls for another check of the complete assembly.

Identify Replacement Shafts by Model and Assembly

A dealer request for a “26 mm brush cutter shaft” leaves out working length and connection details. Start with the exact machine model, then confirm the 26 mm tube, 1350 mm working length and the connections on the actual part before ordering a replacement.

If another model shares the complete shaft assembly, the supplier can document that compatibility. A matching outer diameter alone is insufficient evidence.

Model reference: TM-BG143 backpack brush cutter

The TM-BG143 gives importers a defined shaft-length reference for sample approval and repeat-order inspection. Its listed 143R configuration uses a 41.5cc two-stroke air-cooled engine, 1.6 kW rated output at 6500 rpm, 3000 ±200 rpm idle speed, a diaphragm carburetor, 1:30 mixed-fuel ratio and 1200 ml fuel tank. Confirm these details against the configuration quoted for your order.

Check TM-BG143 Specifications

Keep the Approved Shaft in Bulk and Repeat-Order Records

Once a sample is approved, identify its shaft dimensions in the order record. If the supplier proposes another length, assess operator position, drive routing, control movement and replacement-part requirements before accepting the change.

“Same model as last shipment” may not capture a component change. The TM-BG143’s engine designation and specifications can help identify the intended configuration, but the final quotation or proforma invoice should state what will actually be supplied.

Importer and Dealer Checklist

Record the complete machine designation, including TM-BG143 and the quoted 143R configuration where applicable.
State working shaft length and tube diameter as two separate order specifications.
Measure the shaft on the approved assembled sample using an agreed measurement method.
Assess operator reach with the intended cutting attachment fitted.
Observe flexible-drive movement throughout the normal cutting range.
Check control-cable clearance and throttle return as the shaft moves.
Identify replacement shafts by machine model, dimensions and confirmed connections.
Compare production units with the approved sample before shipment.
Reconfirm the shaft assembly and other model-defining details on repeat orders.

Frequently Asked Questions

Is a 26 mm shaft enough to identify a replacement for the TM-BG143?

No. Confirm the 1350 mm working length and the actual assembly connections as well as the 26 mm diameter.

How should an importer check backpack brush cutter shaft length?

Agree on the measurement points with the supplier, measure the approved sample and record the result for production inspection.

Can a shorter shaft replace the approved one if the engine is unchanged?

It may alter reach and the route of the drive or controls. Evaluate the assembled alternative before treating it as equivalent.

What should a brush cutter supplier include in a repeat-order shaft specification?

Include the machine model, approved working length, tube diameter and any connection details needed to identify the correct assembly.

Confirm the shaft before placing a bulk order

Ask the brush cutter supplier to match the quoted TM-BG143 shaft to the sample you intend to approve, then retain its dimensions for production and service-part orders.
