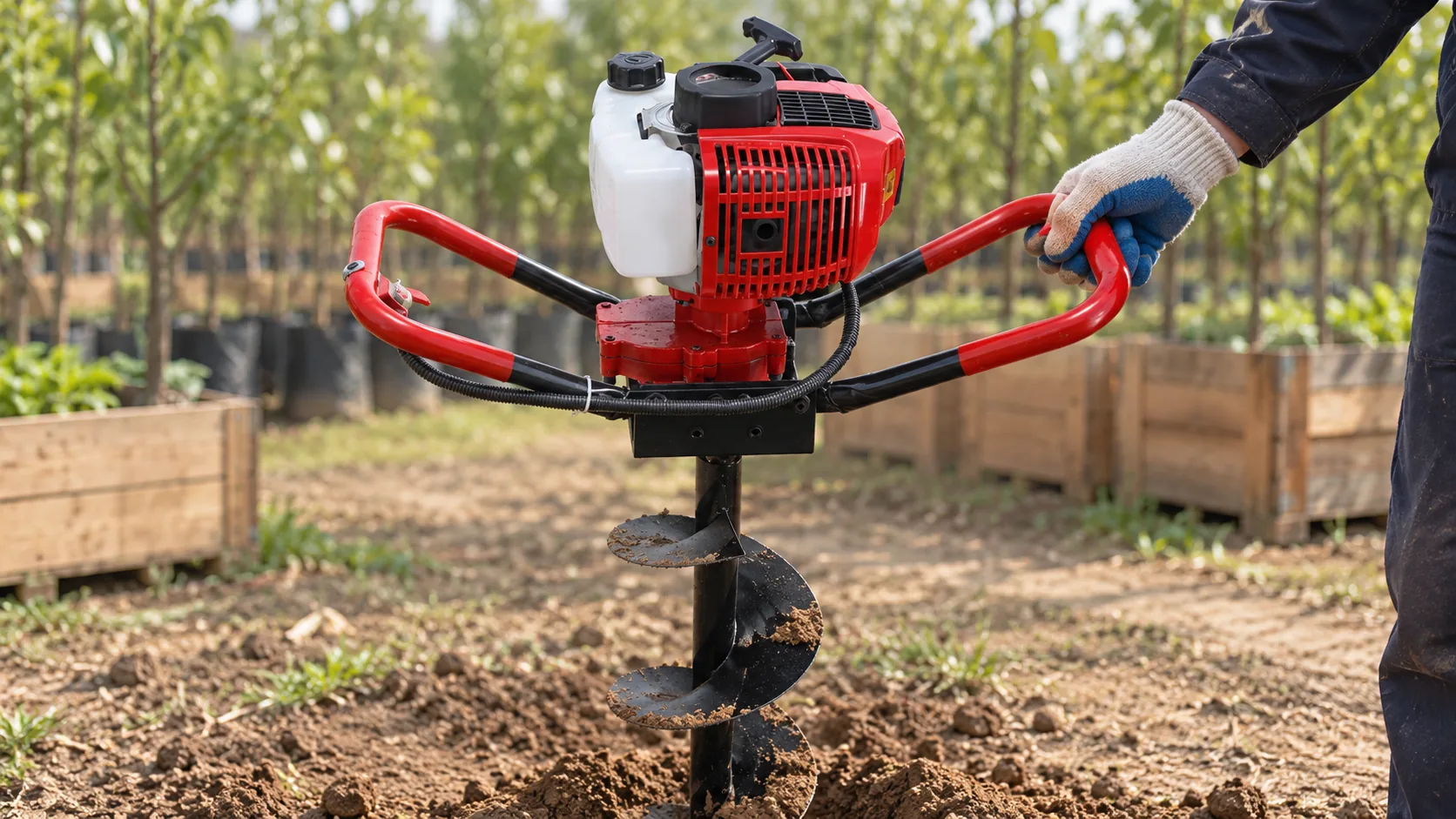

Earth Auger Gear Ratio: What Should Importers Verify First?

Quick answer:

Confirm what the reduction ratio measures, which shaft supplies the input speed and how the output RPM was established. For the TM-EA520C, the listed 30:1 ratio and 180–210rpm drilling speed imply 5400–6300rpm at the gearbox input only if those figures describe the same reduction path and operating conditions. Treat that as a calculation requiring confirmation. Obtain torque limits separately, including units and rating basis, then link the approved transmission data to the sample, gearbox assembly reference and final order.

Define What the Earth Auger Gear Ratio Measures

For a reduction ratio defined as input speed divided by output speed, 30:1 means thirty input revolutions for each output revolution. The quotation needs to identify both shafts and state whether the figure covers the complete reduction path or only one gearbox stage.

This speed-reduction relationship is a calculation, not a field-performance prediction. Use the speed at the identified gearbox input, rather than an unrelated engine figure copied from another model or operating condition.

Ask the supplier to define the ratio convention explicitly. A clearly labeled input-to-output reduction is easier to compare than a bare number whose meaning changes between quotations.

Reconcile the 30:1 Ratio With the Listed 180–210rpm

The TM-EA520C lists a 30:1 transmission ratio and a 180–210rpm boring rotation speed. Applying the stated relationship gives the following conditional calculation:

Listed output speed	Calculation at 30:1	Implied gearbox input
180rpm	180 × 30	5400rpm
210rpm	210 × 30	6300rpm

5400–6300rpm is not a measured engine-speed specification for this model. It is the gearbox input range implied mathematically if the published ratio and output range apply together. Ask the supplier whether those are the corresponding input conditions.

Clarify whether 180–210rpm is an unloaded reference, a loaded measurement or a recommended operating range. Where measured data is supplied, record the measuring location, instrument and test setup. A catalogue range should not become a guaranteed speed in every soil.

The model also lists an automatic centrifugal transmission. Obtain an explanation of the coupling arrangement before substituting engine speed for gearbox input speed. Any running measurement needs a suitable setup and trained personnel, with people and instruments clear of rotating parts; a handheld video alone does not establish RPM.

Request Torque Limits Separately From Reduction

Reduction gearing can increase output torque while reducing speed, but the result depends on input torque and transmission losses. As explained in Oriental Motor’s gearhead selection guidance, the reduction relationship does not remove the need to consider the gearbox’s allowable torque.

Request an identified output-torque specification with a valid unit such as N·m, its associated speed and its rating basis. Continuous operation, a permitted short-duration condition and a calculated value describe different things. An unclear torque entry should remain unresolved until the supplier confirms its unit and meaning.

Do not combine rated engine power with a drilling-speed figure unless both apply to the same operating point and transmission losses are accounted for. A theoretical calculation is not verified gearbox capacity.

The listed 52cc engine identifies the engine class, not allowable gearbox torque. Two machines sold as 52cc earth augers may still require different transmission records.

Compare Quotations Only After the Conditions Are Defined

Use the same transmission fields for every offer. Mark unsupported entries “confirmation required” instead of filling gaps with assumptions that make incomplete specifications look comparable.

Comparison field	Required clarification	Hold approval when
Earth auger gear ratio	Ratio convention, identified shafts and complete reduction path	The number is supplied without a definition.
Input and output speed	Corresponding speeds and loaded or unloaded conditions	Figures come from unrelated operating points.
Output torque	Unit, associated speed, rating basis and allowable limits	A calculated figure is presented as verified capacity.
Sample configuration	Selected bit, agreed ground conditions and gearbox assembly reference	A different setup is used to support the ordered version.

For sample work, identify the bit and ground conditions so the demonstration has a defined scope. This does not make one successful test evidence for every attachment or soil.

Neither the largest reduction number nor the highest output RPM establishes the best offer. If an alternative transmission is proposed, request a revised specification explaining what changes at the output. “Same engine size” or “more torque” is insufficient for substitution approval.

Tie the Approved Transmission to Production and Replacement Parts

Keep the confirmed transmission sheet with the sample reference and final order specification. Record the gearbox assembly reference and any relevant revision so purchasing and receiving teams can identify the approved version.

At incoming inspection, compare available identification and assembly details with the approved reference. External appearance may not establish the internal ratio. Where the distinction matters, request suitable production records or inspection evidence rather than relying on photographs alone.

Do not ask a dealer to open a new gearbox merely to count teeth unless this is an agreed procedure performed by a qualified technician. For replacement assemblies, retain the confirmed ratio alongside mounting and connection references: physical attachment alone does not establish an acceptable operating specification.

Use an Importer Checklist Before Releasing the Order

Each completed item should point to a supplier response, approved specification or inspection record. Leave unresolved fields visible until they are answered.

1. Define the earth auger gear ratio convention and identify input and output shafts.
2. Confirm whether 30:1 covers the complete reduction path or one stage.
3. Obtain the gearbox input conditions corresponding to 180–210rpm output.
4. Identify whether the output range is unloaded, loaded or recommended.
5. Clarify the automatic centrifugal transmission’s coupling arrangement.
6. Record the measurement location, instrument and agreed test setup where data is measured.
7. Confirm output-torque units, associated speed, rating basis and allowable limits.
8. Identify the selected bit and ground conditions for any sample demonstration.
9. Link the transmission sheet to the sample, gearbox reference and final order.
10. Agree on production verification and the approval process for replacement or alternative assemblies.
