How Should Importers Load-Test a 63cc Brush Cutter?

A 63cc brush cutter sample should not be approved simply because the engine starts and accelerates without a cutting attachment. A meaningful evaluation places the complete machine under a controlled cutting load after warm-up, then checks its behavior during a hot shutdown and restart.

This test has a deliberately narrow purpose: to observe how the engine, clutch, shaft and cutting system respond under load and through a heat cycle. Packaging, artwork, supplied spare parts and the complete order configuration still require separate procurement checks.

QUICK ANSWER

Quick answer: Define the fuel, attachment, vegetation and test duration before starting the sample. Establish a safe no-load baseline, increase the cutting load in stages, document the exact symptom if performance changes, and finish with a controlled hot-restart check. For a TM-CG630A sample, connect the results to its 1E48F engine, 63cc displacement, 28mm shaft and approved attachment. A brush cutter manufacturer should be able to repeat the same procedure on selected production units.

01. Define the Load Test Before Starting the Machine

Cutting random vegetation for an undefined period may create an impressive demonstration video, but it produces little comparable evidence. The importer and brush cutter manufacturer should agree on the setup before either party judges the result.

If the attachment, fuel, vegetation or operating sequence changes between samples, the observations should not be treated as a direct comparison. Record the following test conditions first:

Machine setup Machine and engine model Cutting attachment and dimensions Guard and harness configuration Fuel and oil used Confirmed mixing ratio

Test conditions Vegetation type and approximate density Ambient conditions Warm-up time Duration of each cutting stage Operator observations and measured data, if any

02. Establish the TM-CG630A Test Baseline

The TM-CG630A 63cc gasoline brush cutter is listed with a 1E48F two-stroke, air-cooled engine. Its reference specifications include 63cc displacement, rated output of 2.4kW at 6500rpm and idling speed of 3000 ±200rpm.

Reference Item	Published TM-CG630A Specification	Role in the Test
Engine	1E48F, two-stroke, air-cooled	Identifies the tested engine configuration.
Displacement	63cc	Confirms the model’s stated size class.
Rated output	2.4kW at 6500rpm	Provides a reference specification, not a universal pass threshold.
Idling speed	3000 ±200rpm	Supports the initial idle observation.
Fuel configuration	1:30 mixed-fuel ratio; 1200ml tank	Defines the fuel preparation to confirm before testing.
Shaft and weight	28mm shaft; 7.5kg net / 8.5kg gross	Records the presented machine configuration.

These figures identify the sample but do not establish a universal pass result for every cutting condition. Loaded behavior also depends on the confirmed attachment, fuel preparation, vegetation, operator technique and complete machine configuration. The final specification and agreed procedure should be added to the sample approval record or related order documents.

03. Complete Safety and No-Load Checks First

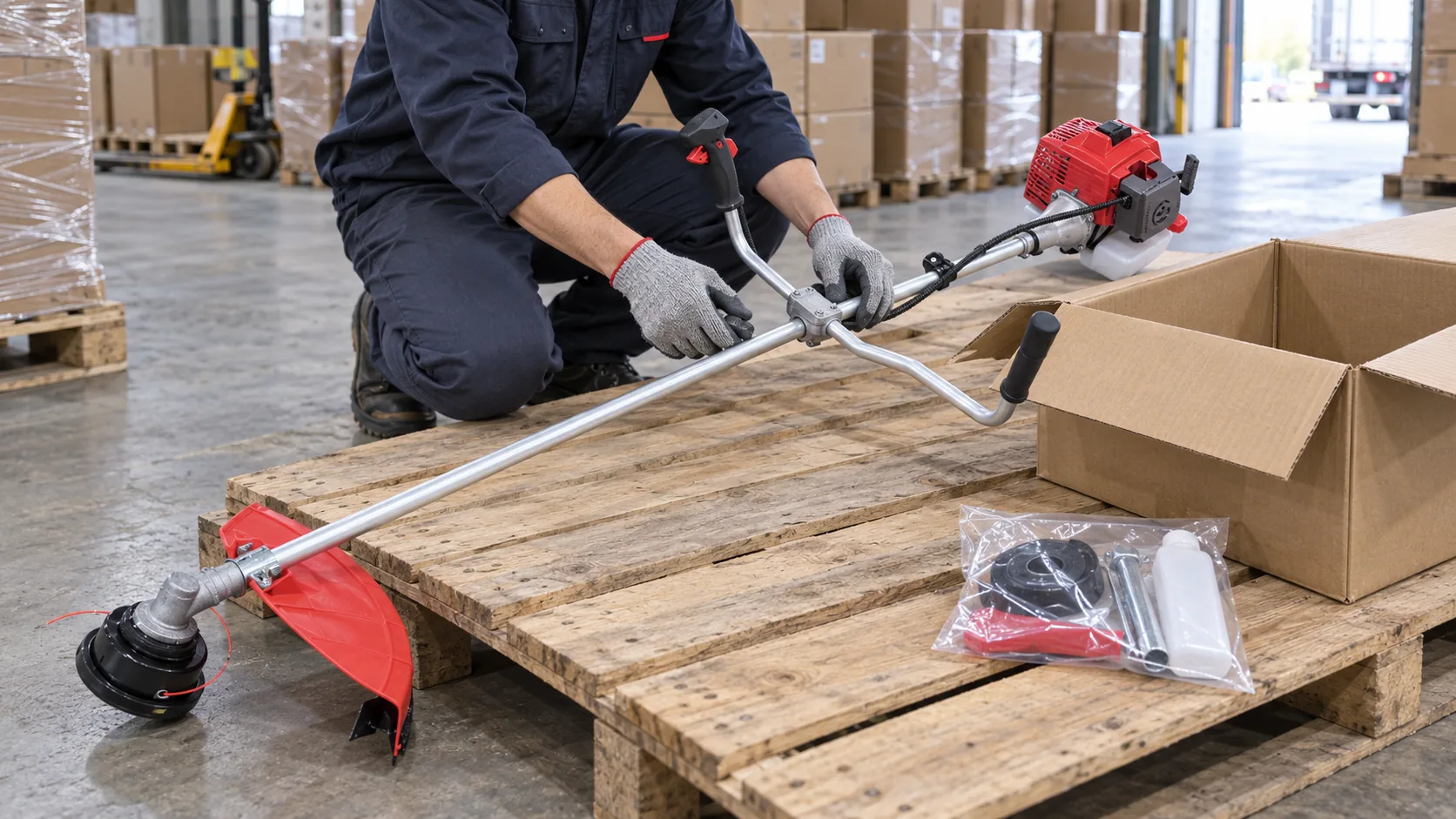

Do not begin with a full-throttle cutting run immediately after unpacking. Install the shaft, handle, guard and cutting attachment according to the supplied instructions. Confirm that fasteners are secure, the throttle returns correctly and the stop control operates.

Rotate the attachment by hand only when the engine is stopped and the spark-plug connection has been isolated according to the service procedure. Check for obvious misalignment or contact between the cutting attachment and guard. Inspect the fuel system for leakage before starting, use the confirmed mixture, and never refuel a hot or running engine.

Testing should take place outdoors in a clear area. The operator needs suitable eye, hearing, hand, leg and foot protection. Keep other people away because blades and trimmer heads can throw stones, wire and other debris.

Start the engine according to the supplied instructions and allow it to warm gradually. Observe cold starting, idle stability and throttle response. Unexpected attachment rotation at idle may indicate that the idle setting, clutch behavior or another setup point requires inspection. Do not attempt an adjustment beside a moving attachment.

04. Increase the Cutting Load in Controlled Stages

Begin with a consistent lower load rather than moving immediately into the densest vegetation available. A staged procedure shows when behavior changes and makes the test easier to reproduce.

1	Maintained grass: begin with the confirmed attachment and a controlled sweeping movement.
2	Taller or denser grass: increase resistance while keeping the working technique consistent.
3	Target-market vegetation: test the vegetation class the machine is expected to encounter.
4	Hot operating stage: repeat the agreed working pattern long enough to reach the planned hot condition.

The objective is not to force the engine to stall. Watch whether speed recovers after the load is reduced, whether cutting speed changes sharply, and whether grass wraps around the cutting head or gear-case area.

Operator technique must remain reasonably consistent. Feeding an oversized attachment too aggressively into tangled vegetation may overload an otherwise suitable machine and produce a result that cannot be repeated fairly.

05. Record the Symptom Instead of Writing “Low Power”

Some reduction in engine speed is expected when the attachment enters vegetation. The useful question is whether the response matches the applied load and whether the machine recovers when that load is reduced. Different symptoms point to different follow-up areas.

Observed Behavior	What to Record or Check Next
Speed drops only in dense vegetation	Document vegetation density, attachment and feed rate before judging engine output.
Engine hesitates whenever the throttle opens	Recheck fuel preparation and starting condition before internal adjustment.
Engine remains fast while the cutting head slows or stops	Treat this separately from engine bogging and inspect the drive-system condition.
Performance falls only after heating	Record operating time and reproduce the heat cycle before diagnosis.
Vibration appears only during vegetation contact	Check attachment condition, installation, wrapping and contact with fixed parts.
Engine stops and will not restart while hot	Document the restart method and pause time; do not assign a component fault immediately.

Avoid changing carburetor settings or replacing internal parts after one brief observation. Fuel preparation, attachment selection, grass wrapping, guard contact and installation conditions should be checked first.

06. Add Hot Restart and Post-Load Inspection

After completing the agreed loaded operation, stop the machine with its normal control and record the working time. From a safe distance, check for leakage, smoke or loose external components while the engine remains hot.

Wait for the pause defined in the test plan, then follow the hot-start procedure in the supplied instructions. Pull or attempt counts are useful only when every sample is tested with the same procedure. A difficult restart should not immediately be described as an ignition-coil or carburetor failure; incorrect choke use, flooding, unsuitable fuel, ventilation conditions and procedural differences can produce similar complaints.

If the engine cannot be restarted safely or shows fuel leakage, let it cool and suspend the test until the cause is inspected. Once the machine has cooled adequately, recheck the external drive system and mounting points.

Although the TM-CG630A lists a 28mm shaft, shaft diameter alone does not confirm the internal drive, clutch or gear-case specification. Record any abnormality against the complete machine and attachment configuration. Do not touch the engine, muffler or gear case immediately after operation because these areas can remain hot after the attachment stops.

07. Convert the Approved Test Into a Production Control

The procurement value of a manufacturer load test comes from repeatability. One successful demonstration does not establish whether production units follow the same standard. Keep the approved sample identification, engine model, fuel instruction, attachment and test record together.

During pre-shipment inspection, select units according to the agreed inspection plan and repeat the critical stages instead of creating a different warehouse test. Compare observable consistency in starting, idle behavior, throttle response, defined-load operation, hot restart and external component stability. A short test should not be used to claim unverified output, daily cutting capacity or service life.

A capable brush cutter manufacturer should be able to document the tested configuration, reproduce the agreed procedure and explain any substitution that may change the result. This provides stronger purchasing evidence than a no-load running video.

Frequently Asked Questions

Is a no-load running video enough to approve a 63cc brush cutter sample?

No. It can show starting and basic throttle response, but it does not demonstrate how the engine, clutch, shaft and cutting system behave under vegetation resistance or after reaching a hot operating condition.

What should be kept constant when comparing two brush cutter samples?

Use the same fuel preparation, attachment, guard configuration, vegetation class, warm-up period, cutting sequence and operator method as closely as practical. Differences in these conditions can change the observed result.

Does a speed drop in dense grass mean the engine has failed the test?

Not automatically. Some speed reduction is expected under resistance. Record whether the response is proportional to the load and whether the machine recovers when the operator reduces that load.

Why should a hot restart be included in the sample test?

A machine may start normally when cold but behave differently after loaded operation. A controlled hot restart documents that condition before diagnosis and gives the importer a repeatable comparison point.

Can the TM-CG630A rated output define the pass result?

No. The listed 2.4kW at 6500rpm is a reference specification. The load-test result also depends on the attachment, vegetation, fuel preparation, complete machine configuration and test method.

What evidence should an importer request from a brush cutter manufacturer?

Request the identified sample configuration, written test setup, staged operating record, exact symptom notes, hot-restart result and post-load inspection findings. The same critical procedure should be available for selected production units.
