Chainsaw Cuts Crooked or Pulls Sideways: Chain, Bar and Sprocket Checks

A chainsaw that repeatedly turns to one side is usually affected by uneven cutter sharpening, inconsistent depth gauges, worn guide-bar rails or incompatible cutting components. This guide explains how users, dealers and importers can identify the cause without forcing the saw through the timber.

Quick Answer

Check the chain first.

When a chainsaw cuts crooked, compare the left-facing and right-facing cutters before replacing engine parts. Unequal cutter length, different filing angles or damaged teeth on one side are the most common causes. If a correctly sharpened test chain still pulls sideways, inspect the guide bar, chain tension, lubrication and drive sprocket.

Do not correct a crooked cut by twisting the rear handle in the opposite direction. This increases operator fatigue, makes the guide bar bind and can worsen wear on the chain, bar groove and drive sprocket.

Stop the engine, allow the cutting equipment to cool and inspect the cutting system in a fixed order. A systematic diagnosis is safer than sharpening random teeth or replacing several parts at the same time.

Five-Minute Diagnostic Route

```

Test Cut

›

Compare Cutters

›

Check Bar Rails

›

Fit Test Chain

›

Inspect Sprocket

```

A Confirm That the Saw Is Actually Pulling Sideways

A crooked cut is different from the guide bar becoming pinched by unsupported timber. When the cutting equipment is responsible, the chainsaw repeatedly drifts toward the same side in clean, stable wood.

Repeated Directional Symptoms

The bar enters straight and gradually turns sideways.
One side of the kerf becomes deeper.
The operator must twist the rear handle.
The bar binds before completing the cut.

Cutting Material Clues

Large chips appear from one side.
Fine dust appears from the other side.
The problem continues in different timber.
The saw still pulls after the wood is supported correctly.

Use clean timber without nails, soil or heavy twisting during the diagnosis. Dirty or unstable material can produce misleading results even when the chain and guide bar are serviceable.

B Uneven Cutter Sharpening Is the Primary Suspect

A saw chain contains cutters facing alternating directions. Both sides must remove a similar amount of wood. When one side is sharper, longer or filed at a more aggressive angle, the chain pulls toward the weaker side.

Error 01

Different Lengths

Cutters on one side remain longer after sharpening.

Error 02

Different Angles

One filing direction receives more pressure.

Error 03

Impact Damage

Several teeth struck soil, stone or metal.

Error 04

Wrong File

The file diameter does not match the chain.

Inspect the chain under good lighting. Compare the top-plate length, filing angle and cutting edge of left-facing and right-facing cutters.

Do not sharpen by stroke count alone. A cutter damaged by contact with the ground may need more filing than an undamaged cutter. Use the shortest correctly shaped cutter as the reference and bring the remaining cutters back to a consistent length and angle.

C Sharpening Procedure for a Straighter Cut

Secure the guide bar. The chainsaw must remain stable while the filing tool is controlled with both hands.

Use the specified file. Match the file type and diameter to the actual chain.

Maintain one angle. File from the inside toward the outside of each cutter.

Inspect each tooth. Do not skip damaged cutters or rely only on the number of strokes.

Compare both sides. Confirm similar cutter lengths and edge condition before testing the saw.

Replace a chain that has cracked parts, severe impact damage, tight joints or cutters that cannot be restored to a safe and reasonably consistent shape.

D Uneven Depth Gauges Can Make One Side Cut More Aggressively

The depth gauge controls how deeply each cutter enters the wood. A chain can look sharp but still cut crooked when the depth gauges differ between the two sides.

How Inconsistency Develops

Cutters are sharpened repeatedly without gauge checks.
Only one side is filed accurately.
A flat file is used without a gauge tool.
Different cutter lengths remain on the same chain.

Dealer Recommendation

Use the correct depth-gauge tool and follow the chain specification. Removing too much material can make the chain grab, increase vibration and raise kickback risk.

E Check the Guide-Bar Rails and Groove

A correctly sharpened chain may still lean to one side when the guide-bar rails are uneven. The chain then runs at an angle inside the groove instead of remaining upright.

Guide-Bar Condition	Effect on Cutting	Recommended Action
Unequal rail height	Chain leans during cutting	Measure and service or replace the bar
Rolled or burred edges	Chain tracking becomes unstable	Service light burrs correctly
Widened groove	Excessive side movement	Replace the guide bar
Blue heat marks	Possible overheating and oil failure	Check lubrication and bar condition
Bent or cracked body	Permanent directional error	Replace immediately

Clean the bar groove and oil holes during inspection. Periodically reversing a serviceable guide bar can help distribute normal wear more evenly.

F Chain Tension and Lubrication Checks

Chain Tension

Keep the Chain Stable in the Groove

A loose chain can move sideways and create an unstable cut. An excessively tight chain increases heat and friction.

Check tension before work, after installing a new chain, after warm-up and whenever the chain hangs below the bar.

Chain Lubrication

Oil Must Reach the Full Bar

Insufficient oil increases friction, accelerates rail wear and can make the chain lose sharpness quickly.

Check the oil tank, saw outlet, guide-bar oil hole and groove for packed sawdust.

Workshop clue: A sharp and correctly lubricated chain should produce defined chips without heavy downward pressure. Fine dust, smoke and slow cutting usually indicate a dull chain, poor lubrication or both.

G Chainsaw Model and Cutting-System Compatibility

Model	Displacement	Rated Output	Guide-Bar Options	Listed Chain Pitch	Application
TM-CS3800	38.2cc	1.4 kW	14 / 16 inch	3/8 inch	Pruning and farm cutting
TM-CS4000	40.2cc	1.6 kW	11.5 / 16 / 18 inch	3/8 inch	General wood cutting
TM-CS4500	45cc	1.8 kW	16 / 18 inch	.325 inch	Heavier cutting work

The TM-CS3800 and TM-CS4000 are listed with a 3/8-inch chain pitch, while the TM-CS4500 is listed with a .325-inch pitch. Replacement chains, guide bars and drive sprockets should not be mixed between models without confirming pitch, gauge, groove width and drive-link count.

Product Reference Desk

```

TM-CS3800

Compact gasoline chainsaw for pruning, farm cutting and lighter wood applications.

View This Model

TM-CS4000

Mid-range petrol chainsaw with several listed guide-bar options for general cutting work.

Check Specifications

TM-CS4500

Higher-output model with a listed .325-inch cutting system for heavier wood applications.

View Product Details

```

H Can a Worn Drive Sprocket Cause Poor Chain Tracking?

A worn drive sprocket can create vibration, irregular chain tension and abnormal wear on the drive links. Installing a new chain on a badly worn sprocket may damage the replacement quickly.

Inspect the Sprocket for:

• Deep wear marks

• Uneven tooth wear

• Cracks or impact damage

• Excessive side movement

• Incorrect chain pitch

• Damage caused by a loose chain

With the engine stopped and the required safety precautions applied, rotate the chain manually. Resistance at the same point on each rotation may indicate damaged drive links, tight joints or sprocket wear.

I Dealer Test: Change One Component at a Time

A controlled test helps separate a chain fault from a guide-bar or sprocket fault.

Stage One

Original Equipment

Record cutter condition, tension, bar wear and oil delivery, then make a test cut.

Stage Two

Compatible Test Chain

If the cut becomes straight, the original chain requires correction or replacement.

Stage Three

Compatible Test Bar

If the saw still pulls with a good chain, inspect or replace the guide bar and sprocket.

Replacing the chain, guide bar and sprocket simultaneously may remove the symptom, but it does not identify which component caused it. Changing one item at a time gives dealers a clearer diagnosis and more accurate warranty record.

J Importer Batch Inspection Checklist

```

Cutting Components

Correct bar length
Correct chain pitch
Correct drive-link count
Compatible bar groove
Matching sprocket

Functional Quality

Uniform chain sharpening
Working tensioner
Oil delivery to the bar
Chain-brake operation
Straight test cutting

Commercial Supply

Replacement bar supply
Replacement chain supply
Separated pitch inventory
Clear carton specifications
Repeat-order consistency

```

Test several machines from each model rather than relying on one sample. A short cutting test can identify a bent guide bar, damaged factory chain or incorrect cutting-system combination before the products reach dealers.

K When the Chain or Guide Bar Should Be Replaced

Replace the Chain When:

Components are cracked.
Cutters are severely damaged.
Joints remain tight after cleaning.
Cutter lengths cannot be restored safely.
Drive links are damaged.

Replace the Guide Bar When:

The bar body is bent.
The rails are heavily uneven.
The groove cannot retain the chain.
Cracks are visible.
A good test chain still cuts at an angle.

Frequently Asked Questions

``````

Why does my chainsaw keep cutting to one side?

The most common cause is uneven sharpening. Cutters on one side may be longer, sharper or filed at a different angle. Uneven bar rails can produce the same symptom.

Should every chainsaw cutter receive the same number of file strokes?

Not necessarily. Damaged cutters may need more filing. The final cutter length and angle are more important than using the same stroke count.

Can a worn guide bar make a chainsaw cut crooked?

Yes. Unequal rails or a widened groove allow the chain to lean sideways. Test the saw with a correctly sharpened chain before replacing the bar.

Can incorrect chain tension cause an angled cut?

A loose chain may move sideways in the bar groove, while an excessively tight chain creates heat and friction. Both conditions reduce cutting stability.

Can dealers use the same replacement chain for different chainsaw models?

Only when pitch, gauge, drive-link count, guide-bar groove and sprocket specification all match. Similar bar length does not confirm compatibility.

What should importers inspect before approving a chainsaw batch?

Check chain pitch, drive-link count, guide-bar compatibility, sharpening consistency, tensioner function, oil delivery, chain brake and straight cutting performance.

Chainsaw Selection for Wholesale Buyers

Compare Bar Length, Chain Pitch and Cutting Application Before Ordering

Teamax Power provides gasoline chainsaw models for pruning, farm cutting, general wood processing and heavier applications. Importers should match each model with the correct guide bar, chain and sprocket specification and keep replacement parts separated by chain pitch.

Review the TM-CS3800, TM-CS4000 and TM-CS4500 configurations.

Compare Chainsaw Models

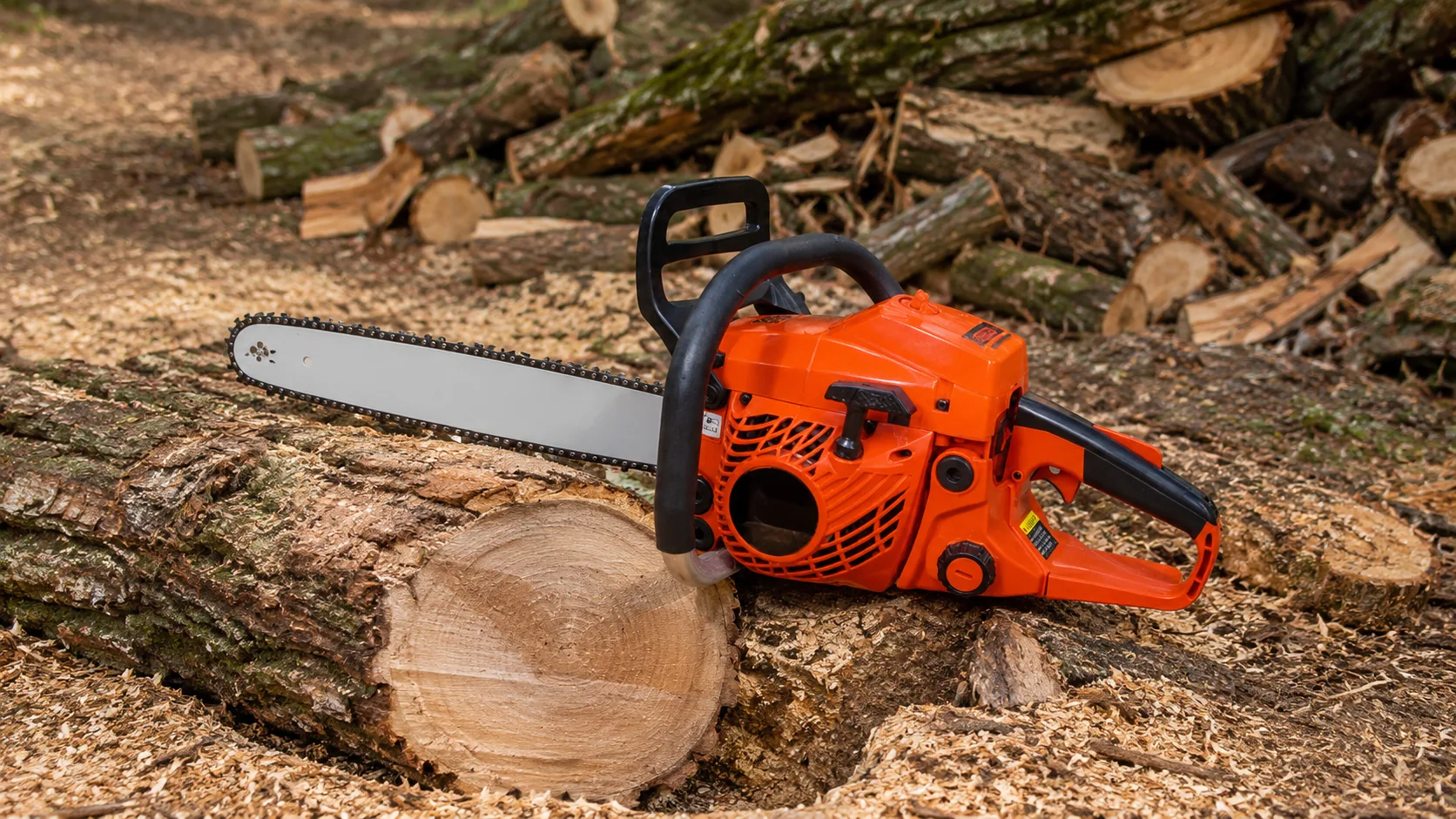

Chainsaw Cuts Crooked: Chain, Guide Bar and Setup Checks
